    Blister Vacuum Forming Machine Full Automatic 3 Stations Positive Negative Pressure

    Ask Lasest Price
    Brand Name : QIXING
    Model Number : QX-L7185
    Certification : CE
    Price : NEGOTIATE
    Payment Terms : T/T
    Supply Ability : 100SETS/YEAR
    Delivery Time : 30-60 DAYS
    • Product Details
    • Company Profile

    Blister Vacuum Forming Machine Full Automatic 3 Stations Positive Negative Pressure

    Positive and Negative Pressure Vacuum Blister Thermoforming Machine Full Automatic 3 Stations


    Full Automatic Three-Station Positive and Negative Pressure Vacuum Blister ThermoForming and Cutting Machine Qx-L7185


    Product Description


    The positive and negative pressure multi-station vacuum forming machine is an innovative product developed by our company with the introduction of German technology for packaging, food, electronics and other industries. The fully automatic function of the station can adapt to various blister packaging products such as bowls, lids, boxes, dishes, electronic trays, medicine, industry, etc. PLA, PS, PET, PP, PVS, ABS and other materials. The machine is widely used, has Strong versatility, fast positive and negative pressure molding machine, has low energy consumption, low noise, high safety and hygiene, convenient operation and maintenance and other advantages are deeply trusted by customers.

    Blister Vacuum Forming Machine Full Automatic 3 Stations Positive Negative Pressure


    Machine parameters


    Term Name DescriptionTechnical Parameters
    Applicable raw materialsPP, PS, PET, PVC, OPS, PLA.
    Maximum molding die area710×850mm
    Minimum molding die area400×450mm
    Applicable sheet width510-750mm
    Applicable sheet thickness0.15-1.2mm
    Maximum punching area610×710mm
    The maximum cutting force of the cutting station is80T
    The maximum opening and closing stroke of the forming mold is150mm
    The maximum opening and closing stroke of the cutting die is150mm
    Molded product height100mm
    The rated power of the whole machine is62kw (actual consumption is 50%)
    Power access380V/50HZ (three-phase five-wire)
    Machine weight12T
    Appearance sizeL11m×W2.0m×H2.3m
    Maximum sheet material roll diameter700mm
    Working efficiency2.5-4 seconds/mode
    cooling methodThe mold is cooled by circulating water
    Client air source (external configuration)Air supply volume≥5.5m³/min, air pressure 0.6~0.8Mpa

    Machine Features


    This machine is a three-station vacuum thermoforming machine, which is especially suitable for the production of various types of cornstarch lunch boxes, PET fruit boxes, food trays and other plastic products. The pull tab adopts a 5.5KW servo and is equipped with a high-precision star reducer. The machine is more accurate, ensuring that punching and cutting are not offset, the upper and lower forming 5.5KW, the upper and lower punching and cutting stations are equipped with high-power 7.5KW, the servo is not easy to heat during the high-speed operation of the servo, and the empty machine test 52.8 molds/min, to ensure the actual production speed of 20-35 molds/minute, the electric box adopts condensing cold air to ensure that the electric box does not overheat, and a thermal protection device is set to prevent the servo motor from being overloaded and overcurrent due to long-term work and damage to the equipment.

    Blister Vacuum Forming Machine Full Automatic 3 Stations Positive Negative Pressure

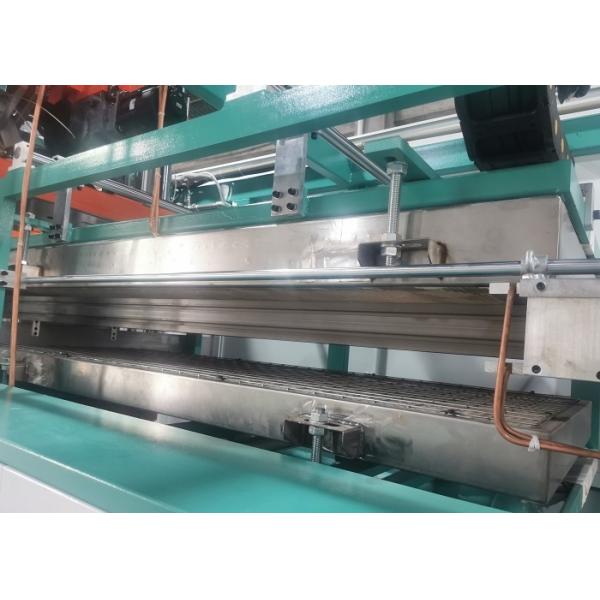

    The new type of electric furnace, the heating frame is designed with all-aluminum and stainless steel, which is not deformed, the weight is stable, the heat dissipation is fast, and the heating is stable. The heating brick adopts the ceramic infrared radiation heater of Swedish Cornell heating wire, and the intelligent temperature control system ensures fast heating, high precision and stability.

    Blister Vacuum Forming Machine Full Automatic 3 Stations Positive Negative Pressure

    The sheet feeding chain adopts an imported double-row roller chain with teeth, an integral aluminum alloy chain guide, compact structure, the guide is equipped with a cooling water circuit, high cooling efficiency, an internal circulating water circuit, saving water source. The chain is equipped with an automatic oil supply pump to supply oil, lubricate the chain and the guide rail, and prolong the service life of the chain and the guide rail.

    Blister Vacuum Forming Machine Full Automatic 3 Stations Positive Negative Pressure

    The machine adopts the design of five fulcrum mechanism, which has a strong working force, stable operation and durable mechanism. The front, middle and rear of the girder are electrically changed to improve the adjustment efficiency. Station lubrication system monitoring, monitoring the number of station actions, when the set data arrives, start oiling lubrication, the oil pump is short of oil, and the system prompts an alarm.
